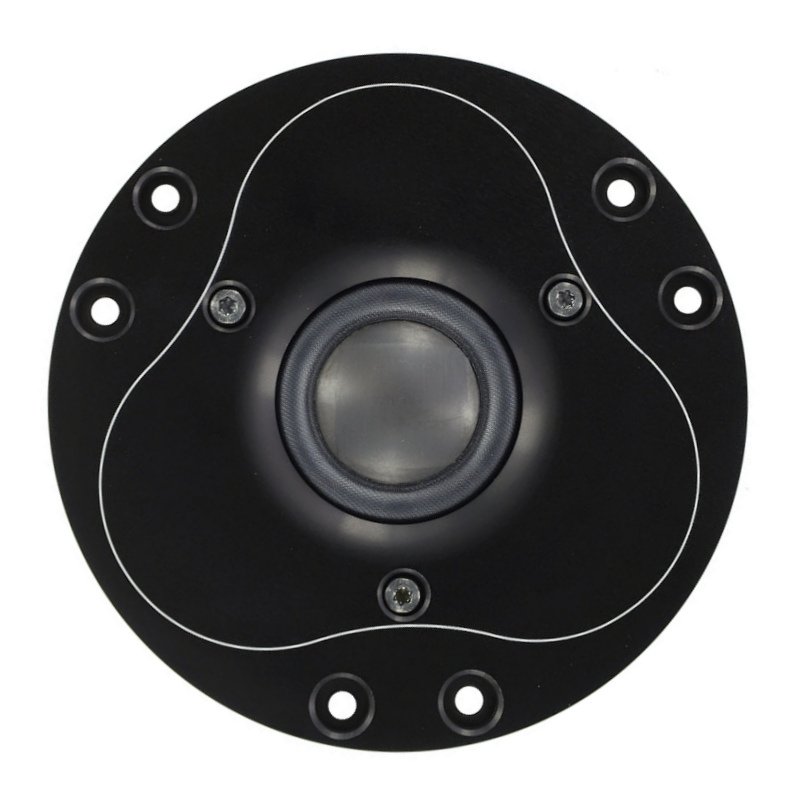

Scan-Speak D3004/666000 ‘Illuminator’

Tweeter with TPCD (Thin-Ply Carbon Diaphragm).

Key feature of Scan-Speak D3004/666000 is the diffraction damping rubber front and AirCirc motor design with six neodymium magnets.

The large roll surround and Thin-Ply Carbon Diaphragm provides a flat frequency response to above 30KHz with outstanding off-axis dispersion.

The unique AirCirc Magnet System with aluminium ring and rear chamber results in elimination of reflections and resonances that compromise the performance of traditional tweeter motors.

– Bespoke tailored Thin-Ply Carbon Diaphragm (TPCD)
– AirCirc Motor Design w. 6 Neo magnets
– Patented Symmetrical Drive (SD-2) motor
– Large Roll Surround f. Wide Dispersion
– Black Anodized mashined Faceplate

See also – Datasheet – d3004-666000
