Scan-Speak 18M/4631T00 (pair)

18cm Midrange 4ohm, Sliced Paper Cone, Large Ferrite Magnet

The Revelator midranges are well known for their sliced paper cone technology. The slices are filled with damping glue, which dramatically reduces break-up modes in the diaphragm. In combination with Scan-Speaks low-loss linear suspension and the patented Symmetrical Drive (SD-1) it represented a breakthrough in midrange clarity and overall smooth frequency response characteristics.

Reviews:

Voice Coil, 06-2016

DIY Kits:

Scan-Speak B1371 (D2908/714000, 18M/4631T00, 32W/4878T01)

- Patented Symmetrical Drive motor design
- Sliced Cone (Control Cone Breakups)
- Low-loss Linear Suspension
- High Sensitivity 92dB @ 2,83V
- Coated Foam Surround
- Rigid Titanium Voice Coil Former

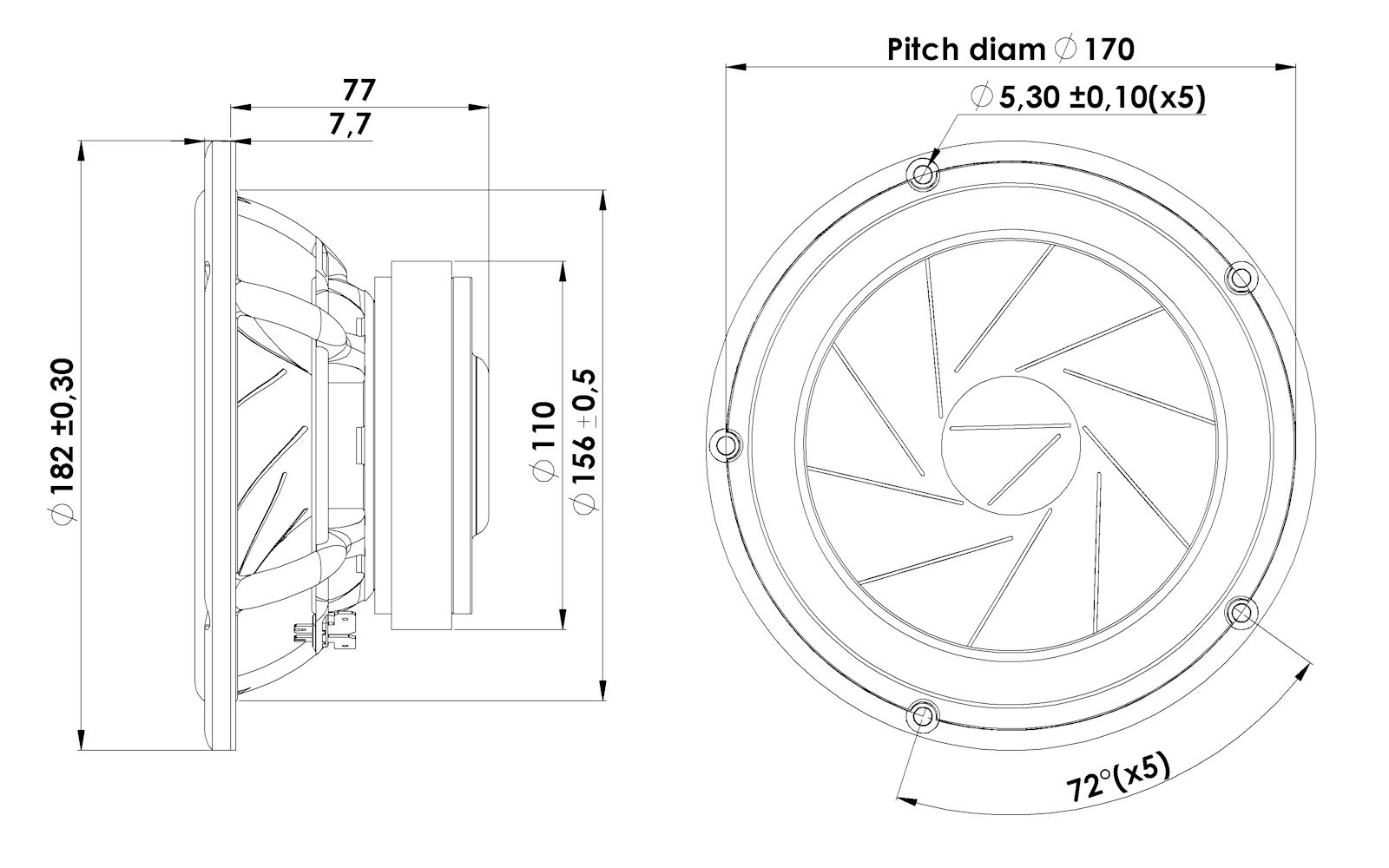

  Size: 18 cm
  Fs: 65 Hz
  Re: 3.5 Ω
  Qt: 0.6
  Sensitivity: 92 dB
  VAS: 14 ltr.
  Sd: 154 cm²

  Bl: 5.6 Tm

370.00 € 370.00 € Tax Excluded
370.00 € Tax Excluded

Not Available For Sale

(185.00 € / unit price)

This combination does not exist.

Revelator
